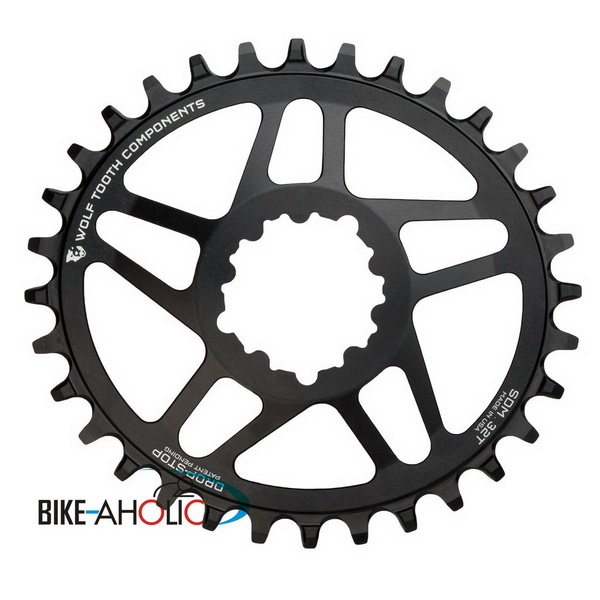

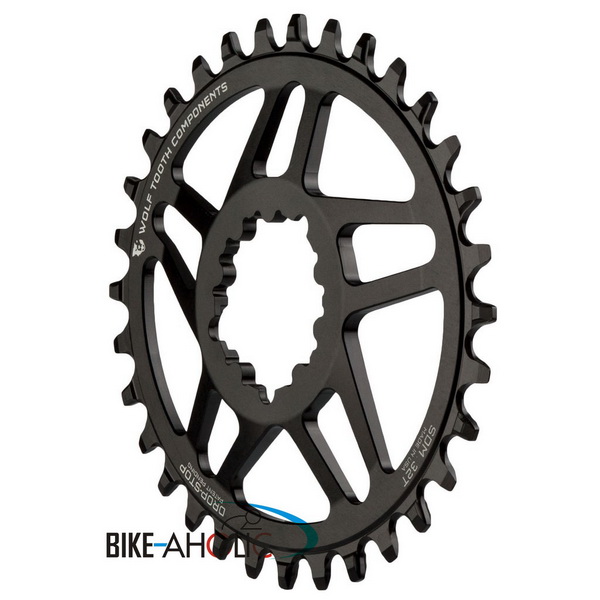

Elliptical Direct Mount for SRAM Cranks

Tech Specs:

•Design and manufactured in the Minneapolis, MN USA

•Wolf Tooth’s patent pending Drop-Stop®  wide/narrow tooth profile for the ultimate chain retention
  and mud shedding ability

  Recommend the use of a clutch style rear derailleur for the best chain security.
•Material 7075-T6

•Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is
  adequate chainstay clearance!)

•Colors - black

•Chainline - 50mm when used on mountain bike cranksets and 44-45mm when used
  on CX/Road cranksets

•Ovality of 10% and timing of 112° after TDC (top dead center)

•Maximum diameter is that of a chainring 2t bigger than the size you order (so be sure there is
  adequate chainstay clearance!)

•If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition
  to a clutch-type rear derailleur! Without these precautions, you may experience chaindrops
  and/or chainsuck.

•A T25 Torx wrench is required to remove the bolts that secure the the chainring or spider
  to the crankarm.

•An L-wrench works best since the crank spindle may contact a socket adapter and prevent it
  from engaging properly.

•Use the same 3 bolts to attach the Wolf Tooth ring or if you need, we carry replacement bolts

•Weight - 28t - 59g, 30t - 65g, 32t - 70g, 34t - 75g
